Diesel locomotives
TE2-414
<space=1em><b>Narrowly specialized</b>
<space=1em>The TE2 series diesel locomotives were created at the Kharkov Transport Engineering Plant in the late <nobr>1940s.</nobr> The experience of building the first domestic serial post-war diesel locomotives of the TE1 series was taken into account. However, unlike the TE1, which were essentially universal locomotives suitable for both mainline and shunting work, the TE2 were created as mainline freight locomotives, which determined a number of features implemented in their design.
<space=1em>The new TE2 series diesel locomotive uses the same basic power equipment as the TE1: a D50 diesel, a traction generator <nobr>MPT-84/39</nobr>, traction electric motors <nobr>DK-304B</nobr>, as well as a two-machine unit, a compressor <nobr>etc.</nobr> However, unlike the TE1, the TE2 diesel locomotive body is not of the bonnet type, but of the wagon type, with the control cabin located at its end, which is much more suitable for train operation.
<space=1em>The number of traction electric motors per diesel generator set, which was six on the TE1, has been reduced to four on the TE2 diesel locomotive. This eliminated one of the main <nobr>disadvantages of the TE1 —</nobr> the "overmotoring" of the locomotive with underutilization of diesel power at high speeds. In addition, changes were made to the electrical circuits and an improved design of the refrigeration unit was used.
<space=1em><b>Two sections</b>
<space=1em>Finally, the most important <nobr>moment —</nobr> the TE2 diesel locomotive is made in two sections, that is, consisting of two identical sections. In fact, it was two autonomous locomotives coupled to each other, working together in a permanent composition and controlled from one post, united under one operational number.
<space=1em>In the absence of high-power diesel engines mastered in production, the use of two sections made it possible to use the new diesel locomotives for hauling freight trains without reducing their weight rating compared to steam traction. The TE2 became the first domestic diesel locomotive to be mass-produced. Later, the two-section design would become classic for Soviet mainline freight diesel locomotives.
<space=1em><b>Serial Production</b>
<space=1em>The first locomotive <nobr>TE2 001</nobr> was built in December <nobr>1948</nobr>, the second <nobr>TE2 002 —</nobr> in July 1949. After testing the prototypes, serial production of the TE2 began, which continued until <nobr>1955</nobr>. A total of 528 locomotives of this series (<nobr>№ 001–528</nobr>) were built during this time. In <nobr>1952</nobr> a group of workers from the Kharkov plant and the diesel locomotive department of the Ministry of Railways were awarded the Stalin Prize of the second degree for the creation of the design and organization of serial production of the TE2 diesel locomotives.
<space=1em><b>Where there is little water</b>
<space=1em>The first TE2 series diesel locomotives were sent from production to railways located mainly in the Central Asian regions of the USSR, where, in conditions of a shortage of good quality water, the use of diesel traction was especially effective compared to steam traction. Later, the locomotives were delivered to railways in many other regions of the country and eventually became quite widespread on the network of the Ministry of Railways, having proven themselves to be simple and fairly reliable machines.
<space=1em>At the end of the <nobr>1950s</nobr> the majority of TE2 series diesel locomotives were used on the Kazakh, Moscow-Okruzhnaya, Ordzhonikidzevskaya, Orenburgskaya, Privolzhskaya and Tashkent railways. Some machines also worked on the Zabaikalskaya, Kirovskaya, Moscow-Ryazanskaya, Oktyabrskaya, Omskaya and Severnaya railways. On many of them, it was with the arrival of the TE2 that the transition from steam traction to diesel locomotive traction began.
<space=1em>Most of the TE2 series diesel locomotives served on domestic railways until the late 1970s — early 1980s.</nobr> The very last of these locomotives were decommissioned in the early 1990s.</nobr> In addition, at the end of the 1950s, a significant number of TE2 series diesel locomotives were transferred to the Mongolian People's Republic, where they served on the Ulaanbaatar Railway.
<space=1em><b>In the museum</b>

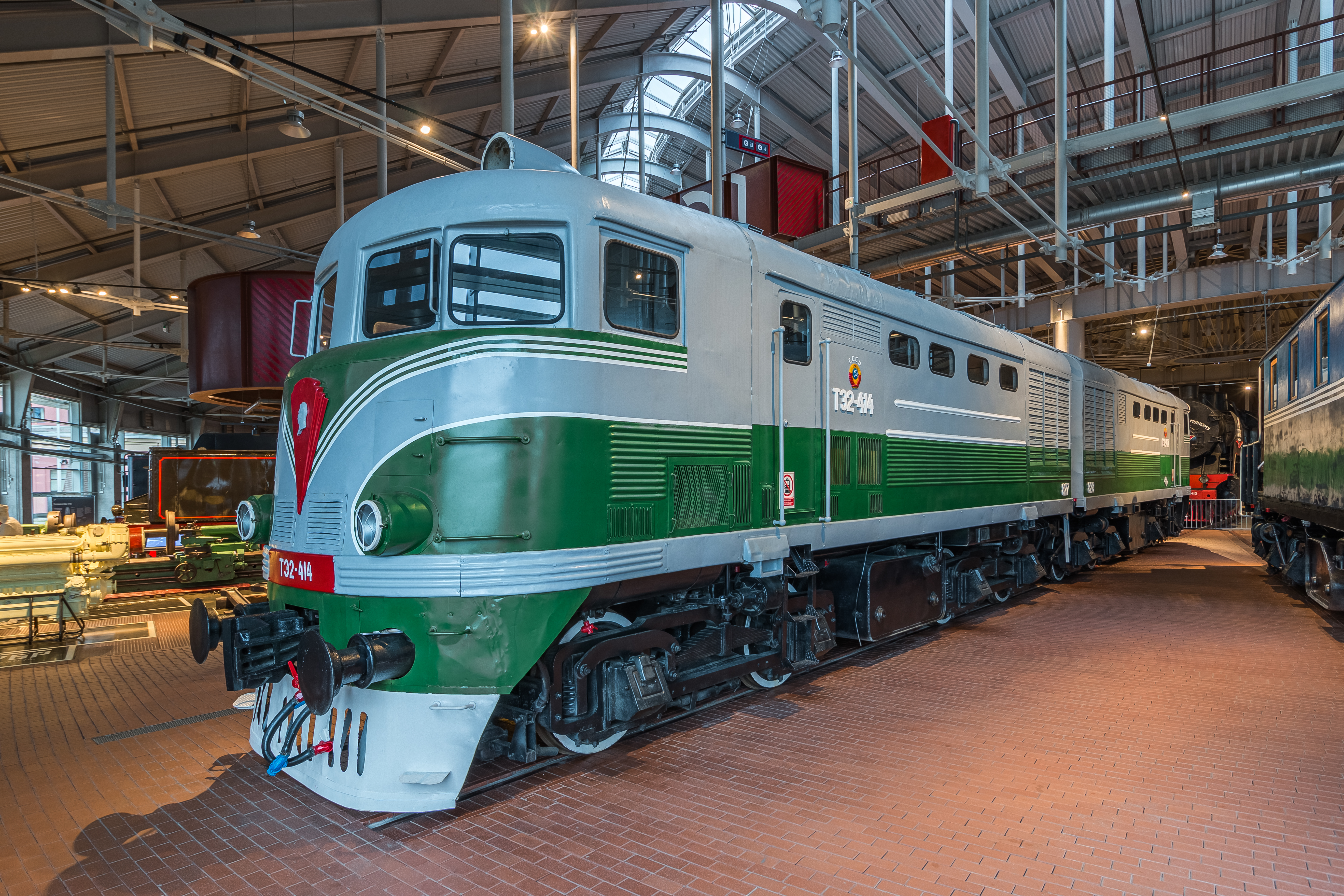

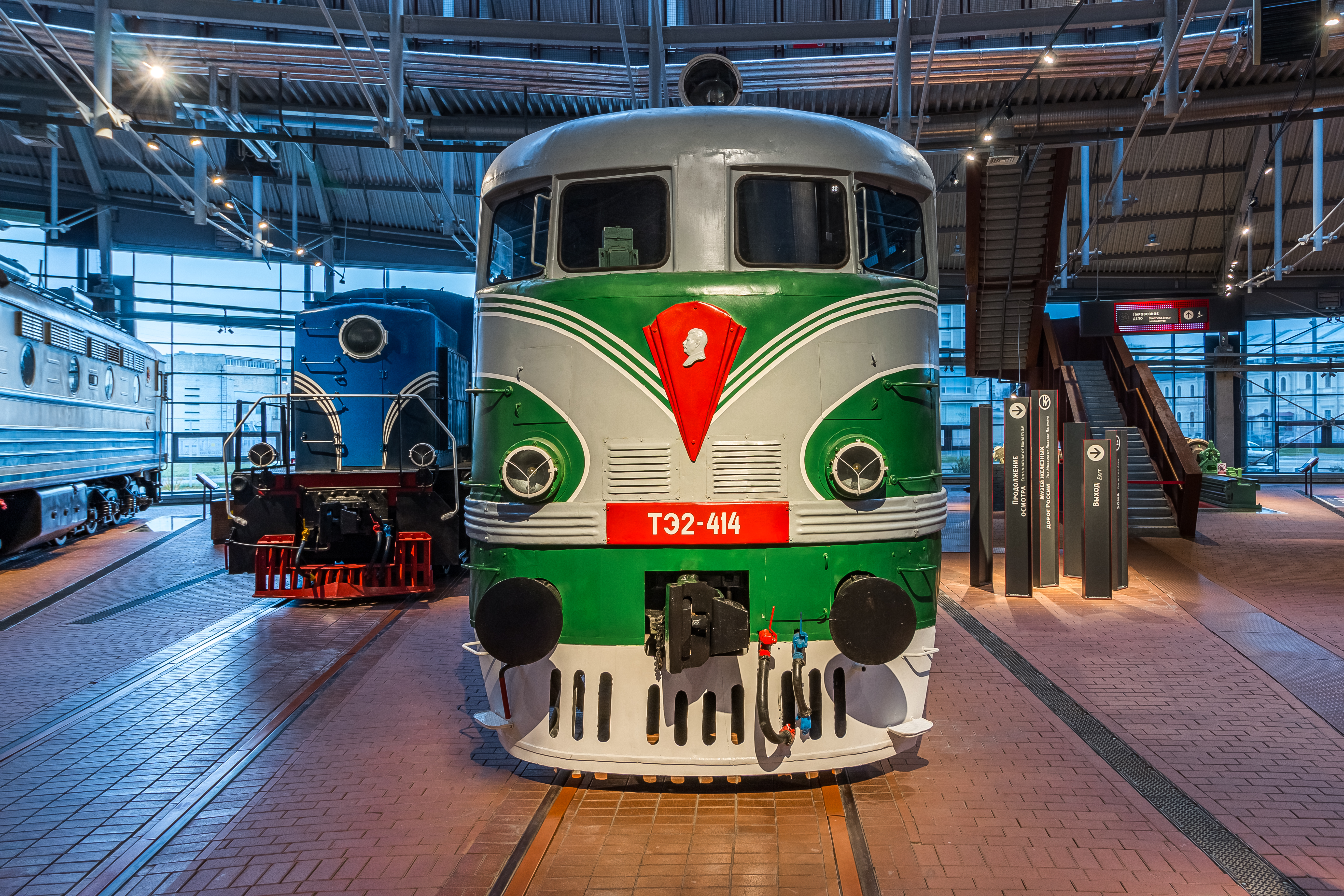

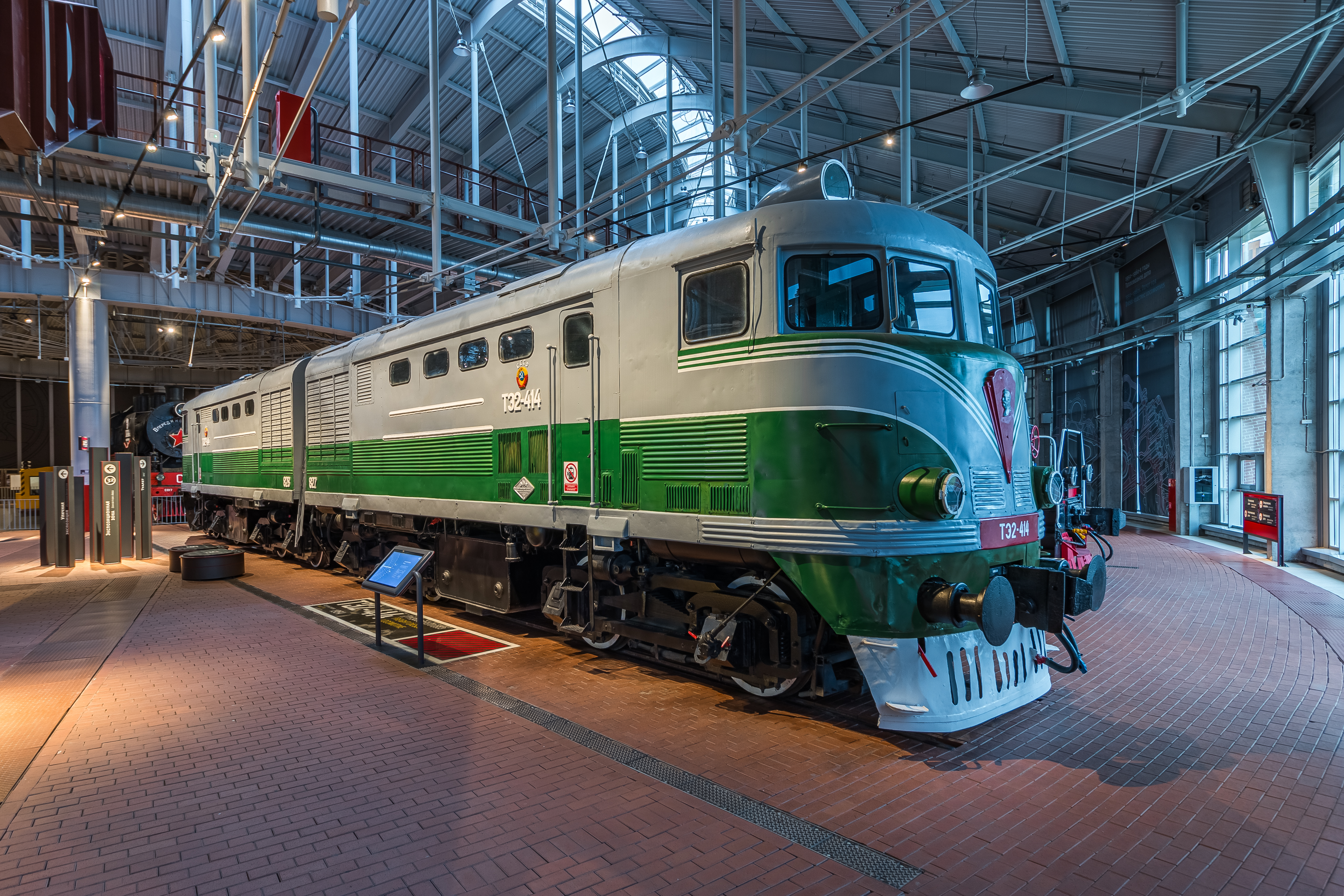

<space=1em>The locomotive <nobr>TE2 414</nobr> (sections <nobr>No. 827 and 828</nobr>), presented in the museum, was built in <nobr>1954</nobr> and was initially used on the Orenburg, Kazakh and Volga railways. In <nobr>1964</nobr> the locomotive was transferred to the October Railway, where it was decommissioned in <nobr>1987</nobr> It was received by the museum from the Murmansk locomotive depot in <nobr>1990</nobr>
ID экспоната:
50
Аудио:
http://dpmzdr.infomedia.digital/files/22/e5/22e5f1524a7cc7c12bf6426a07f1a68baa33de4f.ogg
Галерея изображений:
http://dpmzdr.infomedia.digital/files/30/71/s13071318d352c90942a9db7aa90287340be39ca83.jpg / http://dpmzdr.infomedia.digital/files/20/d5/s120d540c3575584ac324e42d7dbc9fd2cf1186278.jpg / http://dpmzdr.infomedia.digital/files/60/fc/s160fcf27eead1a1a86e8c5c1f0cc89de0041efdb2.jpg
Галерея изображений (оригинал):
http://dpmzdr.infomedia.digital/files/30/71/3071318d352c90942a9db7aa90287340be39ca83.jpg / http://dpmzdr.infomedia.digital/files/20/d5/20d540c3575584ac324e42d7dbc9fd2cf1186278.jpg / http://dpmzdr.infomedia.digital/files/60/fc/60fcf27eead1a1a86e8c5c1f0cc89de0041efdb2.jpg
Галерея изображений 2000:
http://dpmzdr.infomedia.digital/files/30/71/s23071318d352c90942a9db7aa90287340be39ca83.jpg / http://dpmzdr.infomedia.digital/files/20/d5/s220d540c3575584ac324e42d7dbc9fd2cf1186278.jpg / http://dpmzdr.infomedia.digital/files/60/fc/s260fcf27eead1a1a86e8c5c1f0cc89de0041efdb2.jpg
Исторические фото:

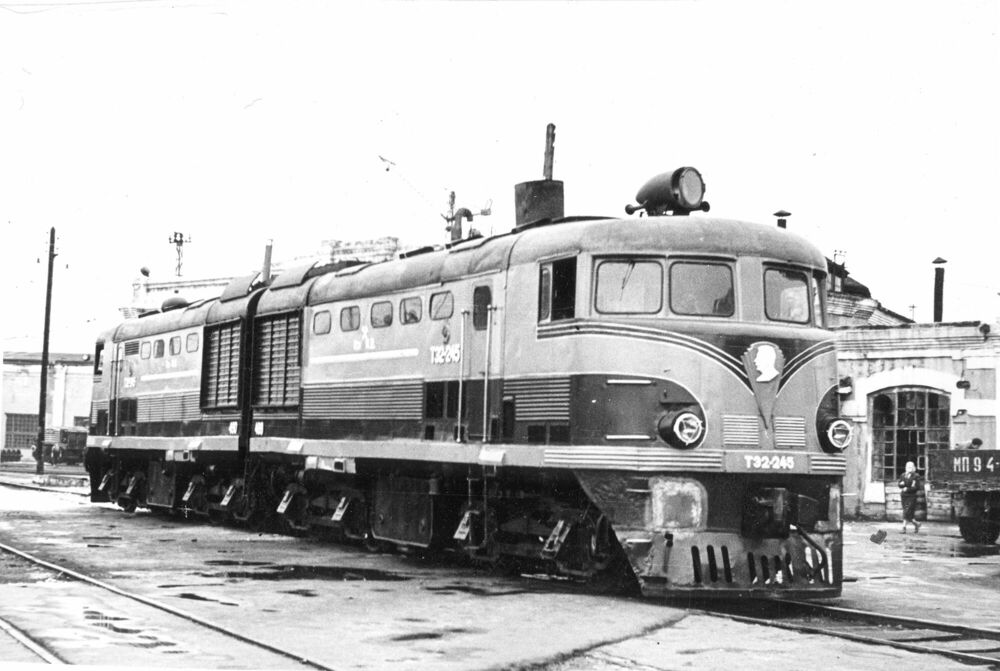

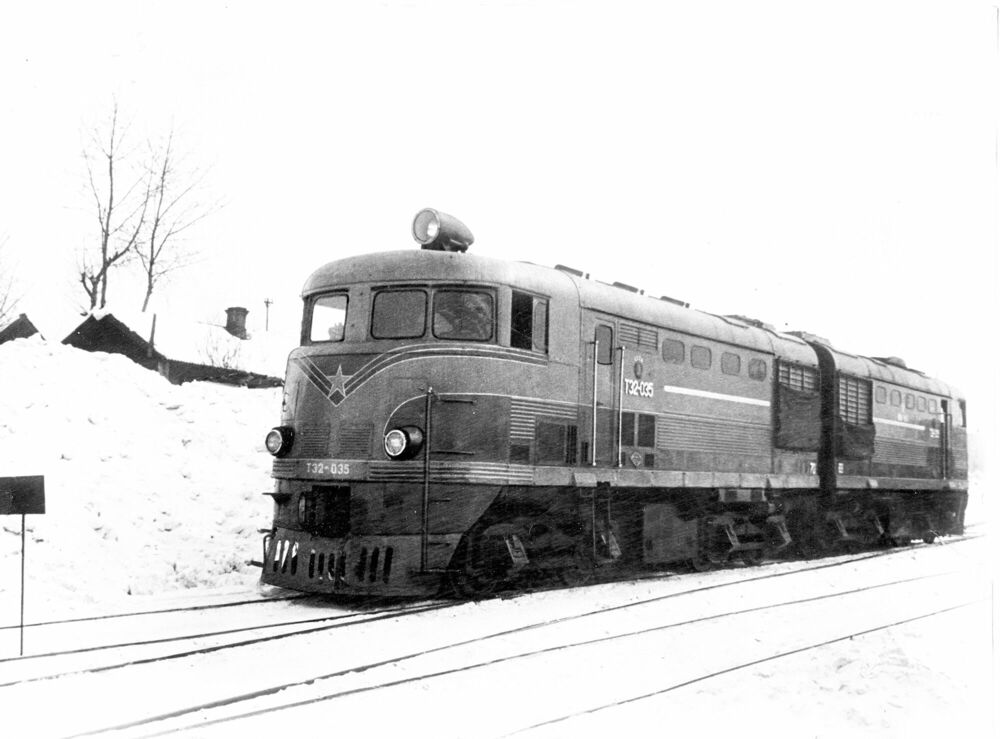

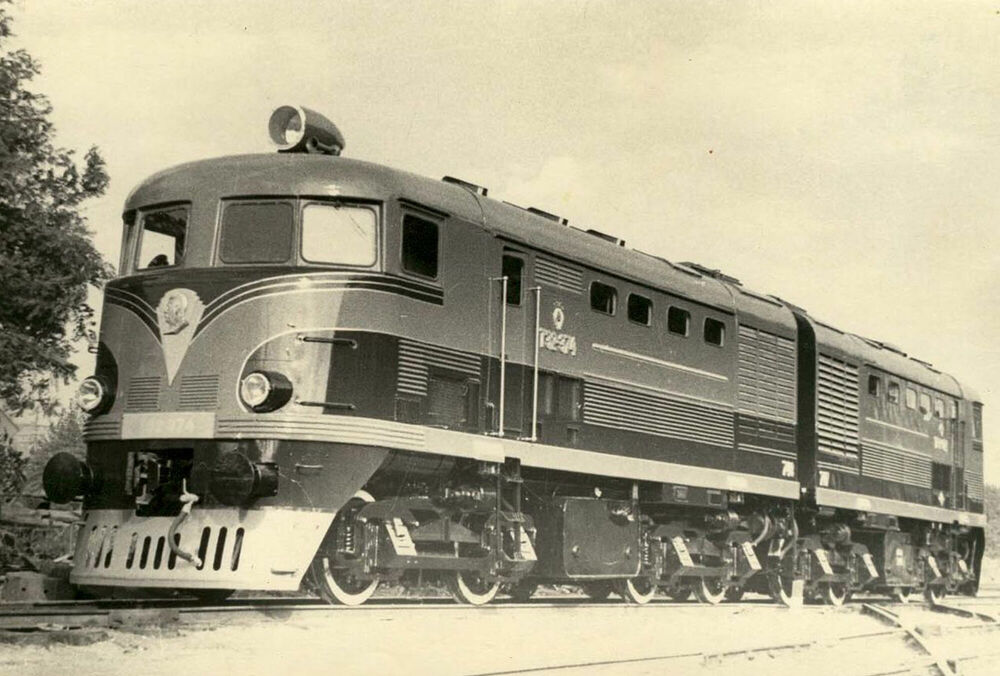

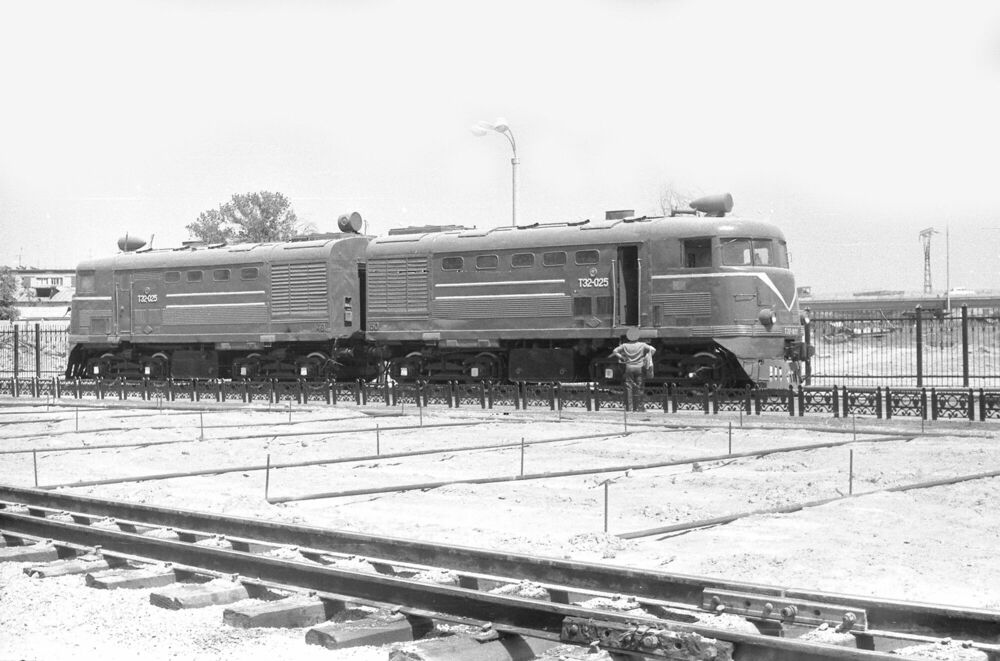

http://dpmzdr.infomedia.digital/files/12/ab/s112abdb5fb1b8da4b87d5dbf27240841faf90baea.jpg / http://dpmzdr.infomedia.digital/files/ba/3c/s1ba3cfbeabe4cd2ea5c1d044140cc0703d5556b93.jpg / http://dpmzdr.infomedia.digital/files/6f/20/s16f2089ab6646f380a2294fcccf2206db91282f29.jpg / http://dpmzdr.infomedia.digital/files/00/f6/s100f6a2686977e0661d8cac9dc4d3d0f81c920532.jpg
Параметры (технические характеристики):
Years of production
1948–1951
Number built, units
528 / Diesel power, hp
2 × 1,000
Power transmission type
Electric, direct current
Axial characteristic
2(2<sub>о</sub>-2<sub>о</sub>)
Design speed, km/h
93
Service weight, t
170
Continuous traction force, kgf
22,000
Diesel type
D50
Diesel characteristic
In-line six-cylinder four-stroke
Traction generator type
MPT-84/39
Traction electric motor type
DK-304B
Axial gear ratio
75:16=4.69
Battery type
32TN-450
Brake compressor type
1KT
Wheel diameter, mm
1,050
Axle load on rails, t
21.25
Speed continuous mode, km/h
17
Equipment reserves (per section), kg
Fuel — 3,500; sand — 400
Length along the axles of automatic couplings, mm
23,895
Body width, mm
3,267
Body height, mm
4,689
Kingpin base, mm
6,200
Bog wheelbase, mm
2,250
Smallest radius of passable curves, m
60
План:
http://dpmzdr.infomedia.digital/files/f2/ee/f2eeac2931d358ed149de97d33c750c40330871e.jpg / http://dpmzdr.infomedia.digital/files/d0/5c/d05cb26aaced8fdfdb0ac4d7da366146223a7cb8.jpg / http://dpmzdr.infomedia.digital/files/0b/8a/0b8a53795f4e70e071feab85740b139ab8185d20.jpg
План 1000:
http://dpmzdr.infomedia.digital/files/f2/ee/s1f2eeac2931d358ed149de97d33c750c40330871e.jpg / http://dpmzdr.infomedia.digital/files/d0/5c/s1d05cb26aaced8fdfdb0ac4d7da366146223a7cb8.jpg / http://dpmzdr.infomedia.digital/files/0b/8a/s10b8a53795f4e70e071feab85740b139ab8185d20.jpg
План 2000:
http://dpmzdr.infomedia.digital/files/f2/ee/s2f2eeac2931d358ed149de97d33c750c40330871e.jpg / http://dpmzdr.infomedia.digital/files/d0/5c/s2d05cb26aaced8fdfdb0ac4d7da366146223a7cb8.jpg / http://dpmzdr.infomedia.digital/files/0b/8a/s20b8a53795f4e70e071feab85740b139ab8185d20.jpg
Хронология:
<space=1em>The TE2 diesel locomotive was developed at the V. A. Malyshev Kharkov Transport Engineering Plant in the late 1940s. It became the first domestic mainline diesel locomotive to be mass-produced. The experience of building the first domestic mass-produced post-war locomotives of the TE1 series was taken into account. But the TE1s were universal machines, suitable for both mainline and shunting work. In contrast, the TE2s were created as mainline freight diesel locomotives. This explains a number of features implemented in their design.
<space=1em>The first TE2-001 locomotive was built in December 1948, the second TE2-002 in July 1949. After testing the prototypes, serial production began and continued until 1955. In total, 528 locomotives of this series (No. 001–528) were produced during this time. In 1952, a group of workers from the Kharkov plant and the diesel locomotive department of the Ministry of Railways were awarded the Stalin Prize of the second degree for creating the design and organizing the serial production of TE2 diesel locomotives.
<space=1em>The first TE2 series diesel locomotives were sent to railways located mainly in the Central Asian regions of the USSR. There, in conditions of a shortage of good quality water, it was much more efficient to use diesel traction than steam.
<space=1em>Later, these locomotives were sent to railways in many other regions of the country and eventually became quite widespread on the network of the Ministry of Railways. They proved themselves to be simple and fairly reliable machines. In the late 1950s, most TE2 diesel locomotives were used on the Kazakh, Moscow-Okruzhnaya, Ordzhonikidzevskaya, Orenburgskaya, Privolzhskaya, and Tashkent railways. Some machines also worked on the Zabaikalskaya, Kirovskaya, Moscow-Ryazanskaya, Oktyabrskaya, Omskaya, and Severnaya railways. On many main lines, it was with the arrival of the TE2 that the transition from steam to diesel traction began.
<space=1em>Most TE2 series diesel locomotives worked on domestic railways until the late 1970s - early 1980s. The last such locomotives were decommissioned in the early 1990s. In addition, in the late 1950s, a significant number of TE2 were transferred to the Mongolian People's Republic, where they worked on the Ulaanbaatar Railway. <space=1em>The TE2-414 diesel locomotive (sections No. 827, 828) presented in the museum was built in 1954. Initially, it was used on the Orenburg, Kazakh and Volga railways, after which in 1964 it was transferred to the October Railway, where it was decommissioned in 1987. It arrived at the museum from the Murmansk locomotive depot in 1990.
Блоки описания:
[{"quote":"TE2 was developed to be a mainline freight diesel locomotive, unlike TE1, which could also be used for shunting.","title":"","images":[],"content":"TE2-class diesel locomotives were created at the Kharkiv Locomotive Works in the late 1940s, using the experience gained from building the first Soviet post-war diesel locomotive class, TE1. However, unlike the class TE1, which was a universal locomotive suitable for both mainline and shunting operations, the class TE2 was created as mainline freight locomotives, which was the basis of several features in its design.","subtitle":"Highly Specialised"},{"quote":"","title":"","images":[],"content":"The new class TE2 diesel locomotive used the same basic power equipment as the class TE1: D50 diesel engine, MPT-84\/39 traction generator, DK-304B traction electric motors, two-unit assembly, compressor, etc. However, unlike the TE1, the body of the TE2 diesel locomotive was car-type, not hood-type, with the control cabin located at the end, which is far more suitable for train operation.\r\n\r\nThe number of traction electric motors per diesel engine-generator unit was reduced from six on the TE1 diesel locomotive to four on the TE2. This eliminated one of the weak points of the TE1 — the “over-motorisation” of the locomotive, with underuse of the diesel engine’s power at high speeds. In addition, changes were made to the electrical circuits, and the design of the refrigeration unit was improved.","subtitle":""},{"quote":"The TE2 was designed as a two-unit locomotive, consisting of two autonomous locomotives coupled together.","title":"Defining Feature","images":[],"content":"Last but not least, the defining feature: the TE2 was designed as a two-unit diesel locomotive, consisting of two identical units. These units were two autonomous locomotives coupled together, operated together as a permanent train, controlled from a single station, and designated by a single operating number.","subtitle":"Two Units"},{"quote":"","title":"","images":[],"content":"In the absence of the successful production of high-power diesel engines, the use of two units made it possible to use the new diesel locomotives for driving freight trains without reducing their weight rating compared to steam traction. The TE2 became the first Soviet diesel locomotive to undergo series production. In the future, the two-unit design would become a staple of Soviet mainline freight diesel locomotives.","subtitle":""},{"quote":"","title":"Series Production","images":[],"content":"The first locomotive, TE2 001, was built in December 1948, and the second, TE2 002, in July 1949. After testing of the prototypes, serial production of the TE2 began and continued until 1955. A total of 528 class TE2 locomotives were built in this time (no. 001–528). In 1952, a group of workers from the Kharkiv Locomotive Works and the Diesel Locomotive Department of the Ministry of Railways were awarded the Stalin Prize, second degree, for the design and series production of the TE2 diesel locomotive.","subtitle":"528 Locomotives"},{"quote":"The first class TE2 diesel locomotives were mainly dispatched to Central Asia, where they were particularly effective compared to steam locomotives due to the shortage of good quality water.","title":"","images":[],"content":"The first class TE2 diesel locomotives were mainly sent to railways in the Central Asian regions of the USSR, where a shortage of good quality water made diesel traction particularly effective compared to steam. Later, these locomotives were delivered to the railways in other regions of the country and all in all became quite widespread on the Ministry of Railways network, having proven to be simple and fairly reliable vehicles.","subtitle":"Lack of Water"},{"quote":"","title":"","images":[],"content":"In the late 1950s, most class TE2 diesel locomotives were in operation on the Kazakh, Moscow-Okruzhnaya, Ordzhonikidze, Orenburg, Privolzhskaya, and Tashkent Railways. Individual vehicles were also operated on the Transbaikal, Kirov, Moscow-Ryazan, Oktyabrskaya, Omsk, and Northern Railways. For many of them, the arrival of the TE2 marked the beginning of the transition from steam traction to diesel locomotives.\r\n\r\nMost class TE2 diesel locomotives were operated on Soviet railways until the late 1970s-early 1980s. The last of these locomotives were retired in the early 1990s. Additionally, in the late 1950s, a significant number of class TE2 diesel locomotives were transferred to the Mongolian People’s Republic, where they were operated on the Ulaanbaatar Railway.","subtitle":""},{"quote":"","title":"","images":[],"content":"The TE2 414 diesel locomotive displayed in the museum (units no. 827 and 828) were built in 1954 and was first used on the Orenburg, Kazakh, and Privolzhskaya Railways.","subtitle":"In the Museum"}]
Характеристики (блоками):
[{"name":"Plant","type":"text","value":"Kharkov Transport Engineering","is_two_colls":false},{"name":"The serial number","type":"text","value":"Unknown","is_two_colls":false},{"name":"Year","type":"number","value":"1954","is_two_colls":false},{"name":"Years of production","type":"number","value":"1948–1951","is_two_colls":false},{"name":"Number of built, units","type":"number","value":"528","is_two_colls":false},{"name":"Diesel power, hp","type":"number","value":"2×1000","is_two_colls":false},{"name":"Axial characteristic","type":"number","value":"2(2<sub>0<\/sub>-2<sub>0<\/sub>)","is_two_colls":false},{"name":"Design speed, km\/h","type":"number","value":"93","is_two_colls":false},{"name":"Service mass, t","type":"number","value":"170","is_two_colls":false},{"name":"Continuous thrust force, kgf","type":"number","value":"22,000","is_two_colls":false},{"name":"Diesel type","type":"number","value":"D50","is_two_colls":false},{"name":"Traction generator type","type":"text","value":"MPT-84\/39","is_two_colls":false},{"name":"Traction motor type","type":"number","value":"DK-304B","is_two_colls":false},{"name":"Axial gear ratio","type":"number","value":"75:16=4,69","is_two_colls":false},{"name":"Battery type","type":"number","value":"32TN-450","is_two_colls":false},{"name":"Brake compressor type, CT","type":"number","value":"1","is_two_colls":false},{"name":"Wheel diameter, mm","type":"number","value":"1,050","is_two_colls":false},{"name":"Axle load on rails, t","type":"number","value":"21.25","is_two_colls":false},{"name":"Continuous mode speed, km\/h","type":"number","value":"17","is_two_colls":false},{"name":"Equipment reserves (per section) of fuel, kg","type":"number","value":"3,500","is_two_colls":false},{"name":"Equipment supplies (per section) of sand, kg","type":"number","value":"400","is_two_colls":false},{"name":"Length along the axles of automatic couplings, mm","type":"number","value":"23,895","is_two_colls":false},{"name":"Body width, mm","type":"number","value":"3 267","is_two_colls":false},{"name":"Body height, mm","type":"number","value":"4,689","is_two_colls":false},{"name":"Kingpin base, mm","type":"number","value":"6 200","is_two_colls":false},{"name":"Wheelbase of the bogie, mm","type":"number","value":"2 250","is_two_colls":false},{"name":"Minimum radius of passable curves, m","type":"number","value":"60","is_two_colls":false},{"name":"Power transmission type","type":"text","value":"Electric","is_two_colls":false},{"name":"Diesel","type":"text","value":"In-line","is_two_colls":false},{"name":"Fuel combustion cycle","type":"text","value":"Four-stroke","is_two_colls":false},{"name":"Diesel characteristics","type":"text","value":"Six-cylinder","is_two_colls":false},{"name":"Current","type":"text","value":"Direct","is_two_colls":false}]
История (блоками):
[{"year":"Late 1940s","content":"Class TE2 diesel locomotives are produced at the Kharkiv Locomotive Works."},{"year":"December 1948","content":"The first class TE2 diesel locomotive — TE2 001 — is built."},{"year":"July 1949","content":"The second class TE2 diesel locomotive — TE2 002 — is built."},{"year":"1952","content":"A group of workers from the Kharkiv Locomotive Works and the Diesel Locomotive Department of the Ministry of Railways are awarded the Stalin Prize, second degree, for the design and series production of the TE2 diesel locomotive."},{"year":"1954","content":"The TE2 414 diesel locomotive displayed in the museum is built at the Kharkiv Locomotive Works."},{"year":"1955","content":"End of series production of class TE2 diesel locomotives."},{"year":"Late 1950s","content":"Most class TE2 diesel locomotives are in operation on the Kazakh, Moscow-Okruzhnaya, Ordzhonikidze, Orenburg, Privolzhskaya, and Tashkent Railways. Individual vehicles are also operated on the Transbaikal, Kirov, Moscow-Ryazan, Oktyabrskaya, Omsk, and Northern Railways. A significant number of class TE2 diesel locomotives are transferred to the Mongolian People’s Republic for the Ulaanbaatar Railway."},{"year":"1964","content":"TE2 414 is transferred to the Oktyabrskaya Railway."},{"year":"Early 1980s","content":"Gradual decommissioning of class TE2 diesel locomotives."},{"year":"1987","content":"TE2 414 is retired from the Oktyabrskaya Railway."},{"year":"1990","content":"TE2 414 arrived at the museum from the Murmansk Locomotive Depot."},{"year":"Early 1990s","content":"The last class TE2 diesel locomotive is decommissioned."}]
Чертежи (блоками):

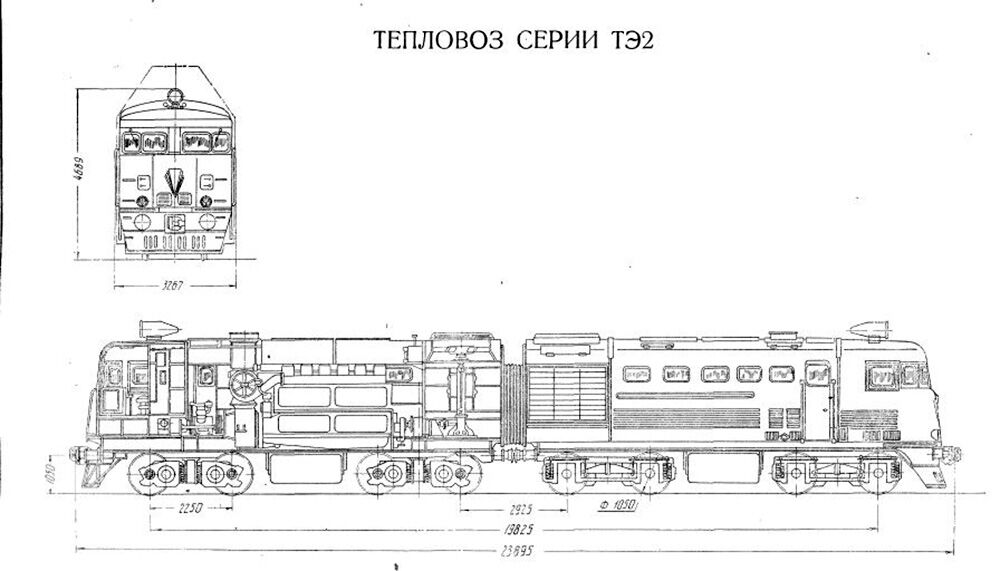

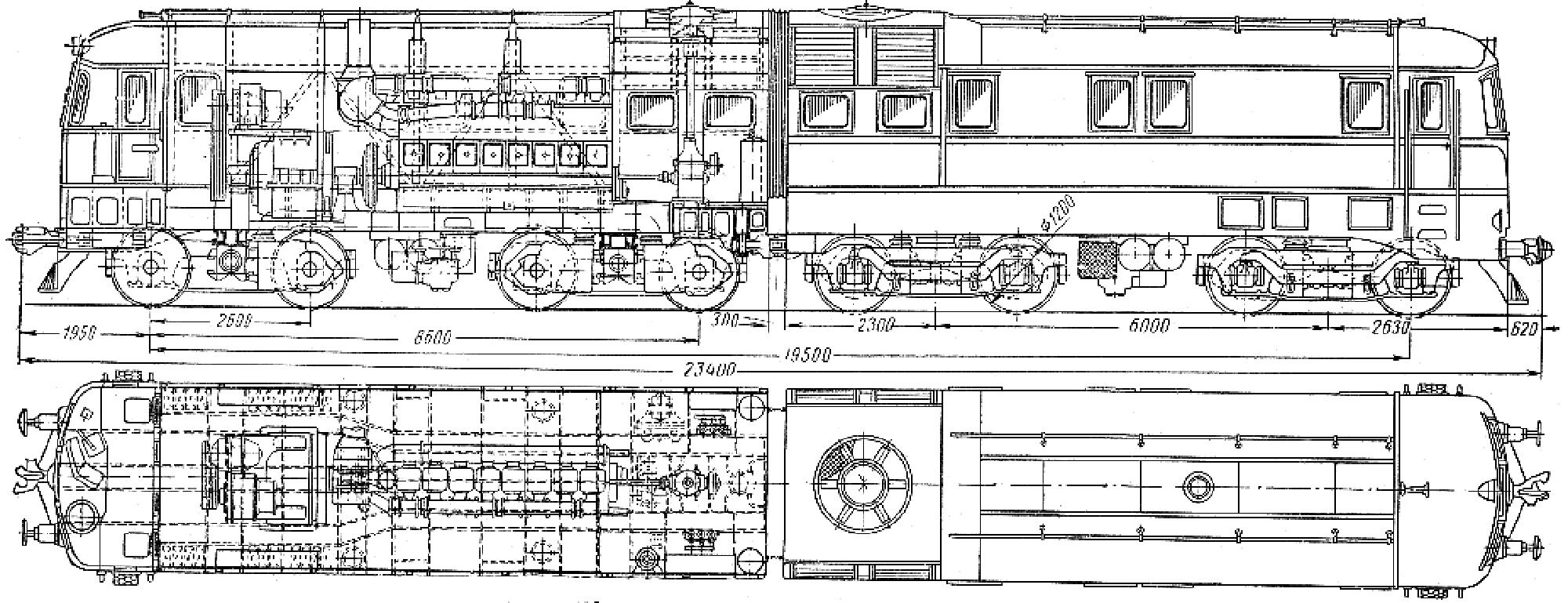

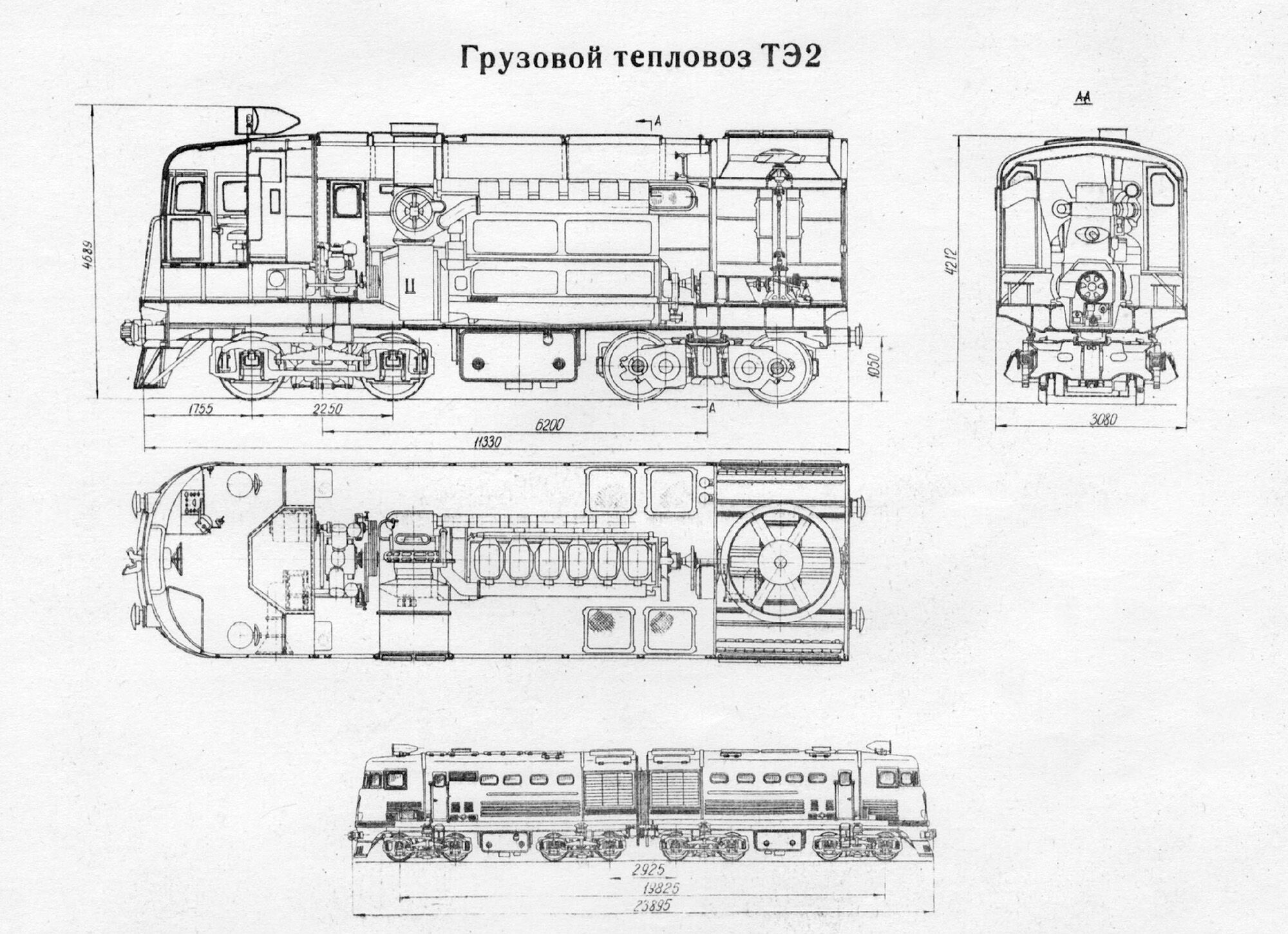

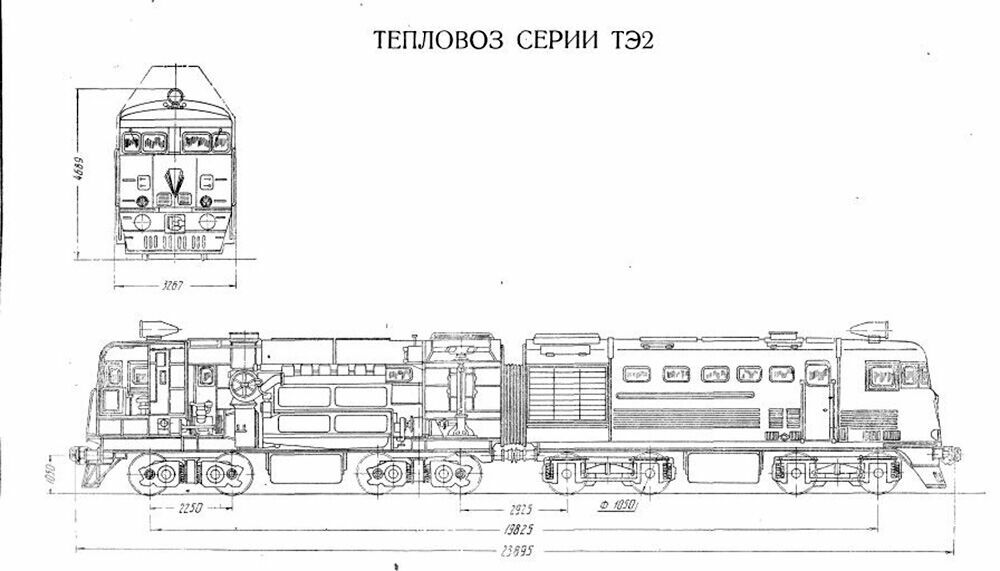

[{"src":"http:\/\/dpmzdr.infomedia.digital\/files\/f2\/ee\/s2f2eeac2931d358ed149de97d33c750c40330871e.jpg","title":"Sectional view of the TE2 series diesel locomotive"},{"src":"http:\/\/dpmzdr.infomedia.digital\/files\/d0\/5c\/s2d05cb26aaced8fdfdb0ac4d7da366146223a7cb8.jpg","title":"Sectional view of the TE2 series diesel locomotive"},{"src":"http:\/\/dpmzdr.infomedia.digital\/files\/0b\/8a\/s20b8a53795f4e70e071feab85740b139ab8185d20.jpg","title":"General view of the TE2 series diesel locomotive"}]
